LIS2DH12TR Sensors, Transducers |
|
Allicdata Part #: | 497-14851-2-ND |
Manufacturer Part#: |
LIS2DH12TR |
Price: | $ 0.41 |
Product Category: | Sensors, Transducers |
Manufacturer: | STMicroelectronics |
Short Description: | ACCEL 2-16G I2C/SPI 12LGAAccelerometer X, Y, Z Axi... |
More Detail: | N/A |
DataSheet: | LIS2DH12TR Datasheet/PDF |
Quantity: | 74 |
8000 +: | $ 0.37706 |
Series: | LIS2D |
Packaging: | Tape & Reel (TR) |
Part Status: | Active |
Type: | Digital |
Axis: | X, Y, Z |
Acceleration Range: | ±2g, 4g, 8g, 16g |
Sensitivity (LSB/g): | 1000 (±2g) ~ 83 (±16g) |
Sensitivity (mV/g): | -- |
Bandwidth: | 0.5Hz ~ 672Hz |
Output Type: | I²C, SPI |
Voltage - Supply: | 1.71 V ~ 3.6 V |
Features: | Adjustable Bandwidth, Selectable Scale, Sleep Mode, Temperature Sensor |
Operating Temperature: | -40°C ~ 85°C (TA) |
Mounting Type: | Surface Mount |
Package / Case: | 12-VFLGA |
Supplier Device Package: | 12-LGA (2x2) |
Base Part Number: | -- |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
The LIS2DH12TR is an ultra-low-power highperformance three-axis linear accelerometer belonging to the “femto” family with digital I2C/SPI serial interface standard output. The LIS2DH12 has user-selectable full scales of ±2g/±4g/±8g/±16g and is capable of measuring accelerations with output data rates from 1 Hz to 5.3 kHz. The self-test capability allows the user to check the functionality of the sensor in the final application. The device may be configured to generate interrupt signals by detecting two independent inertial wake-up/free-fall events as well as by the position of the device itself. The LIS2DH12 is available in a small thin plastic land grid array package (LGA) and is guaranteed to operate over an extended temperature range from -40 °C to +85 °C.
2. Features
1. Wide supply voltage, 1.71 V to 3.6 V
2. Independent IO supply (1.8 V) and supply voltage compatible
3. Ultra-low power consumption down to 2 μA
4. ±2g/±4g/±8g/±16g selectable full scales
5. I²C/SPI digital output interface
6. 2 independent programmable interrupt generators for free-fall and motion detection
7. 6D/4D orientation detection
8. “Sleep-to-wake” and “return-to-sleep” functions
9. Free-fall detection
10. Motion detection
11. Embedded temperature sensor
12. Embedded FIFO
13. ECOPACK®, RoHS and “Green” compliant
3. Applications
1. Motion-activated functions
2. Display orientation
3. Shake control
4. Pedometer
5. Gaming and virtual reality input devices
6. Impact recognition and logging
4. Pin connections

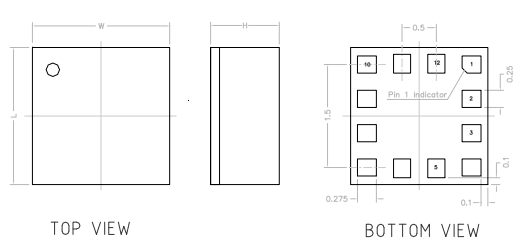

5. package information
