MCP73831T-2ACI/MC

Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us:   sales@allicdata.com

1. Description

The MCP73831T-2ACI/MC devices are highly advanced linear charge management controllers for use in spacelimited, cost-sensitive applications. The MCP73831/2 are available in an 8-Lead, 2 mm x 3 mm DFN package or a 5-Lead, SOT-23 package. Along with their small physical size, the low number of external components required make the MCP73831/2 ideally suited for portable applications. For applications charging from a USB port, the MCP73831/2 adhere to all the specifications governing the USB power bus. The MCP73831/2 employ a constant-current/constantvoltage charge algorithm with selectable preconditioning and charge termination. The constant voltage regulation is fixed with four available options: 4.20V, 4.35V, 4.40V or 4.50V, to accommodate new, emerging battery charging requirements. The constant current value is set with one external resistor. The MCP73831/2 devices limit the charge current based on die temperature during high power or high ambient conditions. This thermal regulation optimizes the charge cycle time while maintaining device reliability. Several options are available for the preconditioning threshold, preconditioning current value, charge termination value and automatic recharge threshold. The preconditioning value and charge termination value are set as a ratio or percentage of the programmed constant current value. Preconditioning can be disabled. Refer to Section 1.0 “Electrical Characteristics” for available options and the Product Identification System for standard options. The MCP73831/2 devices are fully specified over the ambient temperature range of -40°C to +85°C.

2. Features

    1. Linear Charge Management Controller:

        - Integrated Pass Transistor

        - Integrated Current Sense

        - Reverse Discharge Protection

    2. High-Accuracy Preset Voltage Regulation: + 0.75%

    3. Four Voltage Regulation Options:

        - 4.20V, 4.35V, 4.40V, 4.50V

    4. Programmable Charge Current: 15 mA to 500 mA

    5. Selectable Preconditioning:

        - 10%, 20%, 40%, or Disable

    6. Selectable End-of-Charge Control:

        - 5%, 7.5%, 10%, or 20%

    7. Charge Status Output

        - Tri-State Output - MCP73831

        - Open-Drain Output - MCP73832

    8. Automatic Power-Down

    9. Thermal Regulation

  10. Temperature Range: -40°C to +85°C

  11. Packaging:

        - 8-Lead, 2 mm x 3 mm DFN

        - 5-Lead, SOT-2

3. Applications

    1. Lithium-Ion/Lithium-Polymer Battery Chargers

    2. Personal Data Assistants

    3. Cellular Telephones

    4. Digital Cameras

    5. MP3 Players

    6. Bluetooth Headsets

    7. USB Chargers

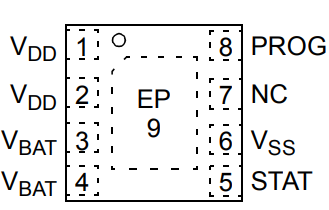

4. Package Types

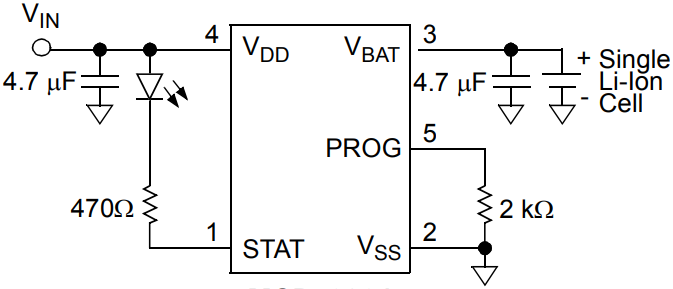

5. Typical Application
