NTMD6N02R2G Discrete Semiconductor Products |
|
| Allicdata Part #: | NTMD6N02R2GOSTR-ND |
| Manufacturer Part#: |
NTMD6N02R2G |
| Price: | $ 0.14 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | ON Semiconductor |
| Short Description: | MOSFET 2N-CH 20V 3.92A 8SOMosfet Array 2 N-Channel... |
| More Detail: | N/A |
| DataSheet: |  NTMD6N02R2G Datasheet/PDF |
| Quantity: | 1000 |
| 1 +: | $ 0.13600 |
| 10 +: | $ 0.13192 |
| 100 +: | $ 0.12920 |
| 1000 +: | $ 0.12648 |
| 10000 +: | $ 0.12240 |
| Series: | NTMD6 |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| FET Type: | 2 N-Channel (Dual) |
| FET Feature: | Logic Level Gate |
| Drain to Source Voltage (Vdss): | 20V |
| Current - Continuous Drain (Id) @ 25°C: | 3.92A |
| Rds On (Max) @ Id, Vgs: | 35 mOhm @ 6A, 4.5V |
| Vgs(th) (Max) @ Id: | 1.2V @ 250µA |
| Gate Charge (Qg) (Max) @ Vgs: | 20nC @ 4.5V |
| Input Capacitance (Ciss) (Max) @ Vds: | 1100pF @ 16V |
| Power - Max: | 730mW |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Package / Case: | 8-SOIC (0.154", 3.90mm Width) |
| Supplier Device Package: | 8-SOIC |
| Base Part Number: | NTMD6N02 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Feature
1. Ultra low RDS(on)
2. Higher efficiency, extending battery life
3. Logic level gate drive
4. Miniature dual SOIC-8 surface mount package
5. The diode exhibits high speed, soft recovery
6. Specify avalanche energy
7. Provide SOIC-8 installation information
8. Lead-free package available
2. Application
1. DC-DC converter
2. Low voltage motor control
3. Computer
4. printer
5. mobile phone
6. cordless phone
7. PCMCIA card
3. Pin configuration

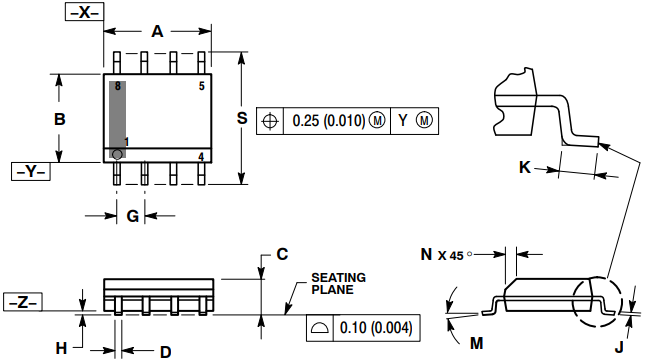

4. Package overview
