ZXTN25020DFHTA Discrete Semiconductor Products |
|
| Allicdata Part #: | ZXTN25020DFHDITR-ND |
| Manufacturer Part#: |
ZXTN25020DFHTA |
| Price: | $ 0.16 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Diodes Incorporated |
| Short Description: | TRANS NPN 20V 4.5A SOT23-3Bipolar (BJT) Transistor... |
| More Detail: | N/A |
| DataSheet: |  ZXTN25020DFHTA Datasheet/PDF |
| Quantity: | 1000 |
| 1 +: | $ 0.16000 |
| 10 +: | $ 0.15520 |
| 100 +: | $ 0.15200 |
| 1000 +: | $ 0.14880 |
| 10000 +: | $ 0.14400 |
Specifications
| Series: | ZXTN250 |
| Packaging: | Tape & Reel (TR) |
| FET Type: | -- |
| Part Status: | Active |
| Technology: | Si |
| Transistor Type: | NPN |
| Drain to Source Voltage (Vdss): | -- |
| Current - Collector (Ic) (Max): | 4.5A |
| Current - Continuous Drain (Id) @ 25°C: | -- |
| Voltage - Collector Emitter Breakdown (Max): | 20V |
| Drive Voltage (Max Rds On, Min Rds On): | -- |
| Vce Saturation (Max) @ Ib, Ic: | 265mV @ 90mA, 4.5A |
| Rds On (Max) @ Id, Vgs: | -- |
| Current - Collector Cutoff (Max): | 50nA (ICBO) |
| Vgs(th) (Max) @ Id: | -- |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 300 @ 10mA, 2V |
| Gate Charge (Qg) (Max) @ Vgs: | -- |
| Power - Max: | 1.25W |
| Vgs (Max): | -- |
| Frequency - Transition: | 215MHz |
| Input Capacitance (Ciss) (Max) @ Vds: | -- |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| FET Feature: | -- |
| Mounting Type: | Surface Mount |
| Power Dissipation (Max): | -- |
| Package / Case: | TO-236-3, SC-59, SOT-23-3 |
| Supplier Device Package: | SOT-23-3 |
| Base Part Number: | ZXTN25020D |
Description
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
Advanced process capability and package design have been used to maximize the power handling and performance of this small outline transistor. The compact size and ratings of this device make it ideally suited to applications where space is at a premium.
2. Features
1. Higher power dissipation SOT23 package
2. High peak current
3. Low saturation voltage
4. 100V forward blocking voltage
5. 5V reverse blocking voltage
3. Applications
1. DC - DC converters
2. MOSFET and IGBT gate driving
3. LED driver
4. Motor drive
5. Relay, lamp and solenoid drive

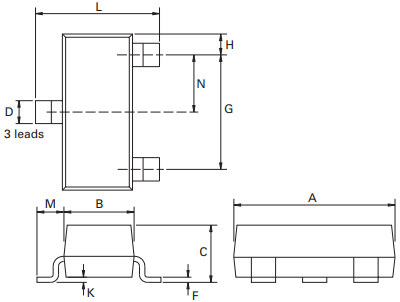

4. Package outline
