NJVMJB44H11T4G Discrete Semiconductor Products |
|
| Allicdata Part #: | NJVMJB44H11T4GOSTR-ND |
| Manufacturer Part#: |
NJVMJB44H11T4G |
| Price: | $ 0.00 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | ON Semiconductor |
| Short Description: | TRANS NPN 80V 10A D2PAK-3Bipolar (BJT) Transistor ... |
| More Detail: | N/A |
| DataSheet: |  NJVMJB44H11T4G Datasheet/PDF |
| Quantity: | 1000 |
| Series: | MJB44H11 |
| Packaging: | Tape & Reel (TR) |
| FET Type: | -- |
| Part Status: | Active |
| Technology: | Si |
| Transistor Type: | NPN |
| Drain to Source Voltage (Vdss): | -- |
| Current - Collector (Ic) (Max): | 10A |
| Current - Continuous Drain (Id) @ 25°C: | -- |
| Voltage - Collector Emitter Breakdown (Max): | 80V |
| Drive Voltage (Max Rds On, Min Rds On): | -- |
| Vce Saturation (Max) @ Ib, Ic: | 1V @ 400mA, 8A |
| Rds On (Max) @ Id, Vgs: | -- |
| Current - Collector Cutoff (Max): | 10µA |
| Vgs(th) (Max) @ Id: | -- |
| DC Current Gain (hFE) (Min) @ Ic, Vce: | 40 @ 4A, 1V |
| Gate Charge (Qg) (Max) @ Vgs: | -- |
| Power - Max: | 2W |
| Vgs (Max): | -- |
| Frequency - Transition: | 50MHz |
| Input Capacitance (Ciss) (Max) @ Vds: | -- |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| FET Feature: | -- |
| Mounting Type: | Surface Mount |
| Power Dissipation (Max): | -- |
| Package / Case: | TO-263-3, D²Pak (2 Leads + Tab), TO-263AB |
| Supplier Device Package: | D2PAK |
| Base Part Number: | MJB44H11 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
Complementary power transistors for universal power supplies Amplification and switching, such as output or driver stage Applications such as switching regulators, converters, and power supplies Amplifier.
2. Feature
1. Low collector-emitter saturation voltage − VCE(sat) = 1.0 V (maximum) @ 8.0 A
2. Fast switching speed
3. Complementary pairs simplify design
4. Epoxy resin meets UL 94 V−0 @ 0.125 in
5. ESD rating: human body model, 3B> 8000 V Machine model, C> 400 V
6. NJV prefix, suitable for automotive and other needs Unique site and control change requirements; AEC-Q101 Qualified and capable of PPAP
7. Provide lead-free packaging

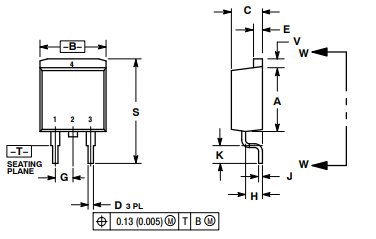

3. Package overview
