| Allicdata Part #: | IRFP250NPBF-ND |
| Manufacturer Part#: |
IRFP250NPBF |
| Price: | $ 0.00 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Infineon Technologies |
| Short Description: | MOSFET N-CH 200V 30A TO-247ACN-Channel 200V 30A (T... |
| More Detail: | N/A |
| DataSheet: |  IRFP250NPBF Datasheet/PDF |
| Quantity: | 14888 |
| Series: | HEXFET® |
| Packaging: | Bulk |
| Part Status: | Active |
| FET Type: | N-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 200V |
| Current - Continuous Drain (Id) @ 25°C: | 30A (Tc) |
| Drive Voltage (Max Rds On, Min Rds On): | 10V |
| Rds On (Max) @ Id, Vgs: | 75 mOhm @ 18A, 10V |
| Vgs(th) (Max) @ Id: | 4V @ 250µA |
| Power - Max: | -- |
| Gate Charge (Qg) (Max) @ Vgs: | 123nC @ 10V |
| Vgs (Max): | ±20V |
| Input Capacitance (Ciss) (Max) @ Vds: | 2159pF @ 25V |
| FET Feature: | -- |
| Power Dissipation (Max): | 214W (Tc) |
| Operating Temperature: | -55°C ~ 175°C (TJ) |
| Mounting Type: | Through Hole |
| Supplier Device Package: | TO-247AC |
| Package / Case: | TO-247-3 |
| Base Part Number: | IRFP250 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Describe
International Rectifier's fifth-generation HEXFET uses advanced process Technology to achieve aggressively low on-resistance per silicon surface. this benefit, Combining fast switching speeds with a rugged device design, HEXFET power MOSFETs are well known to provide designers with Extremely efficient and reliable equipment for a wide variety of applications. The TO-247 package is the preferred choice for commercial industrial applications where Higher power levels preclude the use of TO-220 equipment. TO-247 similar But better than the earlier TO-218 package because it has separate mounting holes.
2. Feature
1. Advanced technology
2. Dynamic dv/dt rating
3. 175°C operating temperature
4. Quick switching
5. Fully Avalanche Rated
6. Easy to connect in parallel
7. Simple driver requirements
8. Lead-free

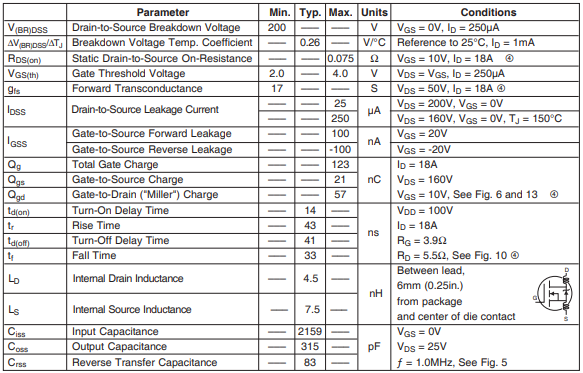

3. Electrical Characteristics
