| Allicdata Part #: | IRLL014NPBFTR-ND |
| Manufacturer Part#: |
IRLL014NTRPBF |
| Price: | $ 0.00 |
| Product Category: | Discrete Semiconductor Products |
| Manufacturer: | Infineon Technologies |
| Short Description: | MOSFET N-CH 55V 2A SOT223N-Channel 55V 2A (Ta) 1W ... |
| More Detail: | N/A |
| DataSheet: |  IRLL014NTRPBF Datasheet/PDF |
| Quantity: | 32500 |
| Series: | HEXFET® |
| Packaging: | Tape & Reel (TR) |
| Part Status: | Active |
| FET Type: | N-Channel |
| Technology: | MOSFET (Metal Oxide) |
| Drain to Source Voltage (Vdss): | 55V |
| Current - Continuous Drain (Id) @ 25°C: | 2A (Ta) |
| Drive Voltage (Max Rds On, Min Rds On): | 4V, 10V |
| Rds On (Max) @ Id, Vgs: | 140 mOhm @ 2A, 10V |
| Vgs(th) (Max) @ Id: | 2V @ 250µA |
| Power - Max: | -- |
| Gate Charge (Qg) (Max) @ Vgs: | 14nC @ 10V |
| Vgs (Max): | ±16V |
| Input Capacitance (Ciss) (Max) @ Vds: | 230pF @ 25V |
| FET Feature: | -- |
| Power Dissipation (Max): | 1W (Ta) |
| Operating Temperature: | -55°C ~ 150°C (TJ) |
| Mounting Type: | Surface Mount |
| Supplier Device Package: | SOT-223 |
| Package / Case: | TO-261-4, TO-261AA |
| Base Part Number: | IRLL014 |
Due to market price fluctuations,if you need to purchase or consult the price.You can contact us or emial to us: sales@allicdata.com
1. Description
Fifth Generation HEXFETs from International Rectifierutilize advanced processing techniques to achieveextremely low onresistance per silicon area. This benefitcombined with the fast switching speed and ruggedizeddevice design that HEXFET Power MOSFETs are wellknown for, provides the designer with an extremely efficientand reliable devicefor use in a wide variety of applications The SOT-223 package is designed for surface mountusing vapor phase, infra red, or wave soldering techniqueslts unique package design allows for easy automatic pickand-place as with other SOT or solC packages but hasthe added advantage of improved thermal performancedue to an enlarged tab for heatsinking. Power dissipationof 1.0VY is possible in a typical surface mount application.
2. FEATURES
1. Surface Mount
2. Advanced Process Technology
3. Ultra Low On-Resistance
4. Dynamic dv/dt Rating
5. Fast Switching
6. Fully Avalanche Rated
7. Lead-Free

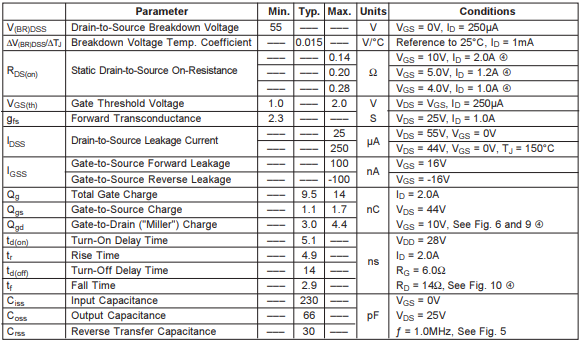

3. Electrical Characteristics
